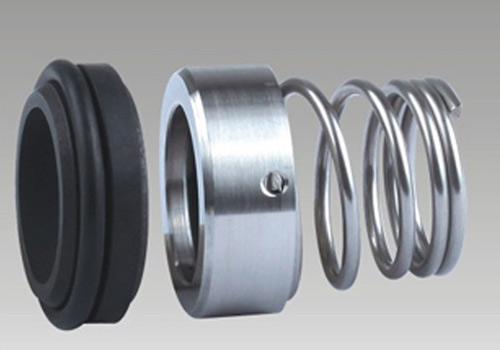

BF-RN mechanical seal, mainly used for clean water, sewage, oil and other moderately corrosive media, all components are fixed together with a unified structural design through the clasp, and can be
Easy repair on site.
Working parameters
Temperature: -40~200 degrees Celsius
Pressure: 1.0 MPa or less
Line speed: ≤15 m/s
Material combination
Static ring: tungsten carbide, silicon carbide, alumina ceramic moving ring: carbon graphite, silicon carbide
Auxiliary sealing: fluoro rubber (fluoro rubber), nitrile butadiene rubber (NBR), ethylene propylene rubber (EPDM)
Spring and metal parts: 304,316 L
Static ring form: Standard: G60 Alternatives: G6, G9
The product description
Single face
The balanced
Arbitrary rotation
Comply with EN12756(DIN24960) standards
In the development and design of any product, we follow the principle of installation size standardization. That is, the installation ruler of this type of mechanical seal is in accordance with international and domestic (API610, API682, DIN24960, ISO3069, GB6556).
